Beschreibung

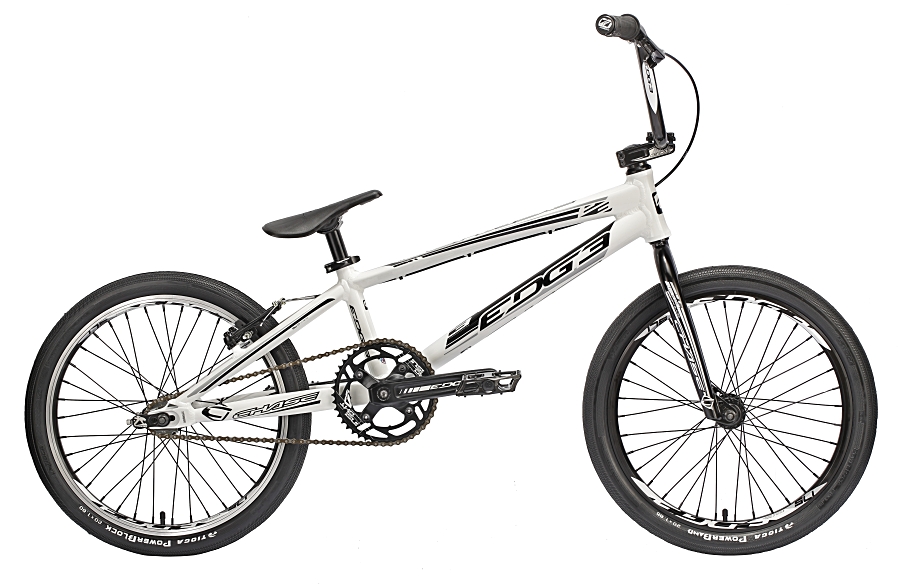

Chase Edge Pro XL
| Fahrwerk | |
| Rahmen: | Chase Edge ProXL 21″ Top Tube 6061 T6 Alloy Hydroformed, Integrated Head Tube, 1-1/8″, Water Decals |
| Gabel: | Chase Edge Full Cr-mo, 1-1/8″ Steer Tube With Tapered Blades |
| Dämpfer: | ohne |
| Räder | |
| Felgen: | Chase Edge 175 Double Wall 36H 1.75″ Schrader Valve |
| Reifen: | Vorne: Tioga PowerBand 1.85″ Hinten: Tioga PowerBlock 1.6″ |
| Nabe vorne: | Pro Hub, 36H, Double Contact Seals Bearing with Dust Caps, 3/8″ Axle/Nuts |
| Nabe hinten: | 36H, Double Contact Seals Bearing with Dust Caps, 3/8″ Axle/Nuts, Steel Cassette Body, 4 Pawl, 96 Points Of Engagement |
| Speichen: | 14 Gauge |
| Schlauch: | 20“*1.5″-1.75″ Schrader Valve |
| Antrieb | |
| Schalthebel | ohne |
| Umwerfer: | ohne |
| Freilauf: | 16 Tooth |
| Kettenblatt: | Insight 44 Tooth 4 Bolt 104mm 1/2″x3/32″ 5mm Alloy Ring |
| Innenlager: | 118mm Sealed Bearing ISIS BB |
| Kurbelgarnitur: | Chase Edge 3 Piece Crank 180mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
| Pedale: | Platform Pedal 9/16″ |
| Kette: | KMC Z33 1/2″x3/32″ |
| Komponenten | |
| Sattelstütze: | Pivotal 27.2x250mm Polished Alloy |
| Sattel: | Pro Pivotal |
| Steuersatz: | Integrated Sealed Bearing |
| Vorbau: | Chase Edge 50mm 6061 T6 Alloy Laser Etched Logo |
| Lenker: | Chase Edge Bar 8″ Rise, 12° Back Sweep & 1° Up Sweep |
| Griffe | Insight C.O.G.S 145mm Alloy Clamps Laser Etched Logo, PVC End Plug |
| Bremse hinten: | Tektro 836AL |
| Bremshebel: | Tektro ML330 |
| Sonstiges | |
| Farbe: | weiß |
| Bike Gewicht in kg: | 9,8 |
| Weitere Auststattung: | – |
